Brand Name : OEM/ ODM/ Lansan
Model Number : Double RG59
Certification : CE/ RoHS/ ETL/ ISO
Place of Origin : China
MOQ : 15000 Meters
Price : Negotiation
Payment Terms : L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability : 100000 Meters/ Day
Delivery Time : 12-14 Work Days
Packaging Details : 100 Meters/ Box
Conductor : Copper or CCS
Insulation : Foam PE or Solid PE
Type : RG59 coaxial cable
Braiding Wire Material : Al or Bc or Tinned Copper
Jacket : PVC
Origin : Shenzhen, China
High Quality 75 Ohm Rg59 Bare Copper or CCS Dual Coaxial Cable
Product Description
| Physical Dimensions | |||
| Component | Standard Shield | Twin | |
| Conductor | Material | CCS/BC | CCS/BC |
| Dia. (mm) | 0.81±0.01 | 2*0.81±0.01 | |
| Dielectric | Material | Foam PE | Foam PE |
| Dia. (mm) | 3.66±0.10 | 2*3.66±0.10 | |
| Shield | Material | Al Foil + Al Braid | Al Foil + Al Braid |
| Coverage | 40%-95% | 40%-95% | |
| Jacket | Material | PVC/PE | PVC |
| Dia. (mm) | 6.00±0.10 | 6.00*13.0±0.10 | |
Electrical Characteristics
| Impedance(Ω) | 75±3 | |||
| Velocity of Propagation | 83% | |||
| Capacitance(pF/m) | 53.1 | |||
| Structural Return Loss(≥dB) | 20 | |||
|
|

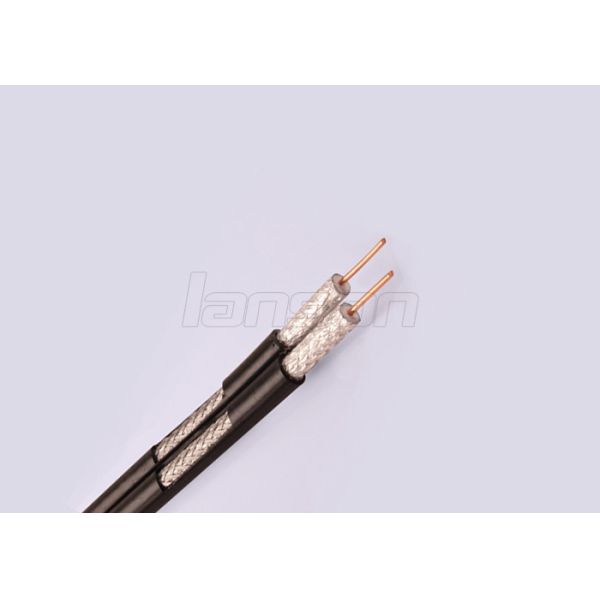

Rg59 75 Ohm Coaxial TV Cable Bare Copper / CCS Dual Coaxial Cable With PVC Jacket Images |
